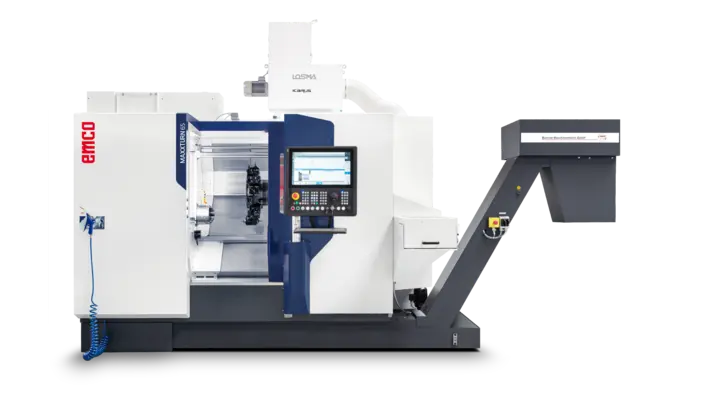

New 2023 EMCO MAXXTURN 65 G2 | Lathe - Single Turret Live Tools

Have one to sell?
(800) 538-7206
jksales@Joneskinden.com
$390,217.99 USD
$347,038.60 USD
ConditionNew
1 available
Have one to sell?

Documents (2)

Universal_CNC_Turning_Center_Maxxturn_65_G2.pdf
EMCONNECT_Your_guide_in_technology.pdf

Overview

Type:
Lathe - Single Turret Live Tools
Manufacturer:
EMCO
Model:
MAXXTURN 65 G2
Condition:
New - In-Stock
Year:
2023
Stock #:
1
Status:
For Sale

Description

MAXXTURN 65-G2 SMY - SIEMENS

CNC turning center for the complete machining of turned / milled parts with two spindles, milling turret, Y-axis integrated spindle motors on main and counter spindle (water-cooled) and preloaded roller guides in all axes. State-of-the-art control technology SINUMERIK ONE with ShopTurn dialog programming.

Swing28.543"725 mm
Machining Length33.071"840 mm
Bar Capacity2.5591"65 mm
Spindle Connection00
# Axis44
Power38.9 hp29 kW
Max RPM5,000 RPM5,000 RPM
Turning Dia19.685"500 mm
Travel X/Y/Z260/80/610260/80/610
Chuck Size0"0 mm
Bar Diameter6565
Max Turning Diameter500.0500.0
Distance between Centers840.0840.0
Swing over bed725.0725.0
Rapids (X/Y/Z)30/15/3030/15/30
Main Spindle - Max Speed5000 rpm5000 rpm
Main Spindle - Max torque250/325 Nm250/325 Nm
Main Spindle - Max Power29 kW29 kW
Tool ConnectionBMT55PBMT55P
Number of tools1212
Live Tools1212
Live Tool RPM12000.012000.0
Live Tool Power10 kW10 kW
Counter Spindle - Max Speed6000 rpm6000 rpm
Counter Spindle - Max Torque130 Nm130 Nm
Counter Spindle - Max Power22 kW22 kW

Base Machine - Sinumerik ONE Controller
BMT55P 12 Station Turret
English Language
Electronic Handwheel
Std. Robot Interface
Parts Catcher
Bar Loader Interface
Machine Status Lamp
Tool Pre-setter
USA Voltage 480/3 Phase
USA Freight & Duties

Included Accessories:
2 WTO ER25 Straight Live Tool Holders
2 WTO ER25 90 Degree Live Tool Holders
1 WTO quick Change Tool
1 WTO 4 Position Tool Block

Kennametal KM40 Block

Lyndex 1" Cutoff Tool Holder Block

Royal Products Collet Chuck for Main and Sub Spindle
Collet removal Tool
Choice of 2 Royal QG Collets
Spindle Liners

Edge Technologies Rebel 80 Barfeeder with Installation

Iso Kennametal Tool Holders
